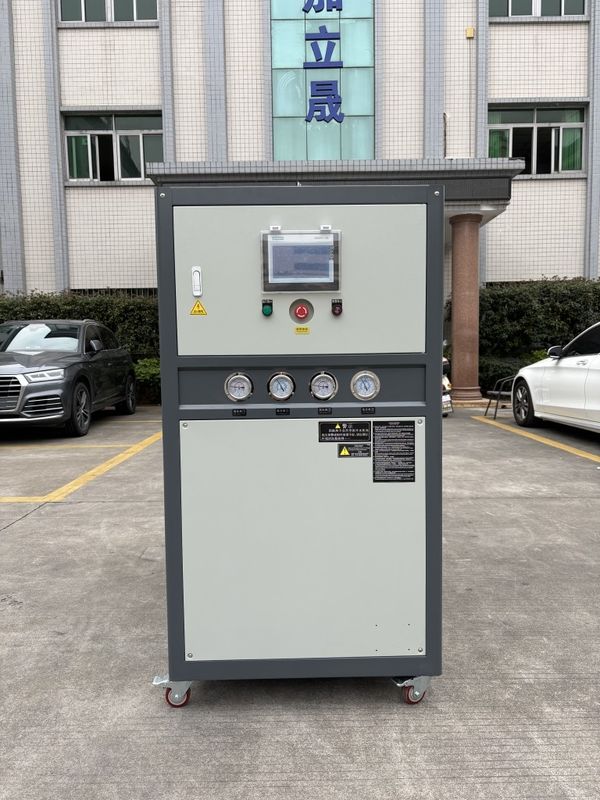

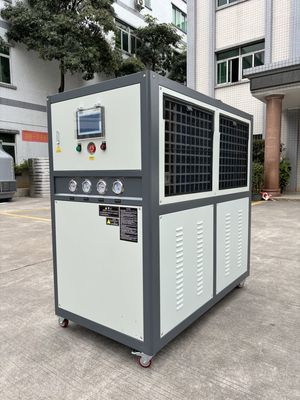

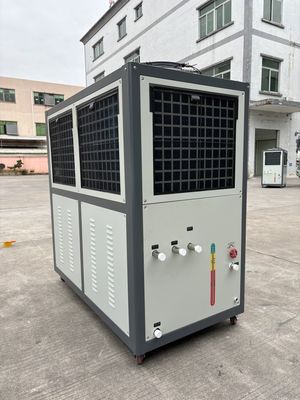

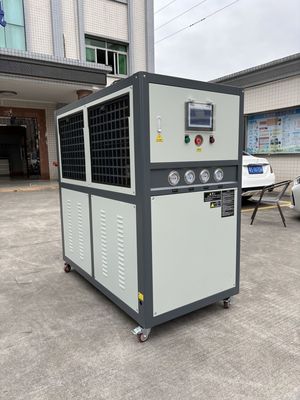

JLSF-12HP Air Cooled Water Chiller 10ton 10TR Cooling Capacity Packaging Machinery Extruder
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | JIALIS |
| Certification: | CE/ISO9001 |
| Model Number: | JLSF-12HP/10Ton/10TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Discuss |
| Packaging Details: | Plywood wooden box |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 300 units per month |
|
Detail Information |
|||
| Product Name: | Air Cooled Water Chiller | Control System: | SiemensPLC/ 7-inch Touch Screen |
|---|---|---|---|
| Outlet Water Temperature: | 5-35℃ | Compressor Type: | Scroll/Semi-Hermetic/Hermetic |
| Evaporator: | Water Tank Coil/Shell And Tube/Plate Heat Exchanger | Condenser: | Finned Tube |
| Condenser Fans: | Axial/Centrifugal | Noise Level: | ≤65dB(A) |
| Refrigerant: | R22/R407C/R134A/R410A/R404A | Protection System: | High/Low Pressure, Water Flow, Overload, Etc. |
| Pump: | Centrifugal/vertical | Water Flow Rate: | 5-6m³/h |
| Warranty: | 12 Months | ||
| Highlight: | Air Cooled Water Chiller 10ton Capacity,Packaging Machinery Air Cooled Water Chiller |
||
Product Description
Product Description:
Air-cooled chiller is a kind of chiller equipment, also known as chiller. It discharges heat by using an air condenser, so it is called "air-cooled", which is different from the way water-cooled chillers work, which uses a water condenser to discharge heat.
Compared with the traditional water-cooled chiller, the difference between the air-cooled chiller and the traditional water-cooled chiller is that it uses an air cooler as a condenser, and the fan blows the air required for heat dissipation from one side of the machine and exhausts it from the other side. Achieve cooling. Therefore, the air-cooled chiller does not need an external cooling water source, is independent, and is very convenient to install and move.
Production Features:
Air-cooled chiller is a common refrigeration equipment, its main features are as follows:
1.Independence: The air-cooled chiller does not need to be connected to an external cooling water source through pipes or water pumps. It is independent and easy to install and move.
2.High efficiency and energy saving: The air-cooled chiller adopts high-efficiency compressors and heat exchangers, which can reach the set temperature requirements in a short period of time, and can also reduce energy consumption and have better energy-saving effects.
3.Easy maintenance: The air-cooled chiller is simple in structure, easy to maintain, easy to clean and repair.
4.Low noise: The air-cooled chiller has low operating noise and will not interfere with the surrounding environment and personnel. It is suitable for places that require a quiet environment.
5.Automatic control: The air-cooled chiller adopts an advanced control system, which can automatically adjust the temperature and humidity to ensure stable and reliable cooling effect.
6.Flexibility: The air-cooled chiller can be used alone or in conjunction with other equipment to meet different needs.
In general, the air-cooled chiller has the characteristics of independence, high efficiency and energy saving, easy maintenance, low noise, automatic control and flexibility, and is an ideal equipment widely used in various refrigeration needs.
Working Principle:
The main components of an air-cooled chiller include a compressor, an air condenser, an expansion valve, and an evaporator. Here is a basic overview of its workflow:
1.The compressor takes in low-pressure, low-temperature refrigerant gas and compresses it into high-pressure, high-temperature gas.
2.This high-temperature, high-pressure refrigerant gas enters the air condenser, exchanges heat with the ambient air, and discharges heat to the environment, while the refrigerant condenses from a gaseous state to a liquid state.
3.The high-pressure refrigerant liquid passes through the expansion valve, the pressure suddenly drops, and it turns into a low-pressure and low-temperature refrigerant liquid.
4.The low-temperature and low-pressure refrigerant liquid enters the evaporator, absorbs indoor heat, evaporates into a gaseous state by itself, and the indoor temperature drops to achieve the purpose of refrigeration.
5.The refrigerant gas is sucked into the compressor again to complete a cycle.
The advantages of air-cooled chillers include simple installation, no need for cooling towers and cooling water pumps, and low maintenance costs. However, its efficiency is lower than that of water-cooled chillers, especially at high ambient temperatures, and its efficiency will be further reduced
| ① Compressor | ⑤ Evaporator | ⑨ Temperature sensor | ⑬ Bypass valve |
| ② Condenser | ⑥ Ball valve | ⑩ Water tank | ⑭ Low voltage controller |
| ③ Filter drier | ⑦ Antifreeze switch | ⑪ Water pump pressure gauge | ⑮ High voltage controller |
| ④ Expansion valve | ⑧ Float switch | ⑫ Water pump |
⑯ Pressure relief valve |
Techinical Parameters:
| Model | JLSF-1HP | JLSF-2HP | JLSF-3HP | JLSF-4HP | JLSF-5HP | JLSF-6HP | JLSF-8HP | JLSF-10HP | ||
| Cooling capacity | KW/h | 3.1 | 6.2 | 9.3 | 12.4 | 15.5 | 18.6 | 24.8 | 31 | |
| Kcal/h | 2,700 | 5,400 | 8,100 | 10,800 | 13,500 | 16,200 | 21,600 | 27,000 | ||
| Temperature range | 5℃-35℃(Below 0℃ can be customized) | |||||||||
| Power supply | 1PH-220V 50HZ/60HZ 3PH-380V/415V 50HZ/60HZ | |||||||||
| Total power | KW | 1.21 | 2.03 | 2.84 | 3.7 | 4.5 | 5.7 | 7.33 | 8.83 | |
| Compressor | Type | Hermetic scroll type or piston | ||||||||
| Power | KW | 0.75 | 1.50 | 2.25 | 3.00 | 3.75 | 4.50 | 6.00 | 7.50 | |
| Circulating pump | Power | KW | 0.375 | 0.375 | 0.375 | 0.375 | 0.75 | 0.75 | 0.75 | 1.5 |
| Head | m | 22 | 22 | 22 | 22 | 23 | 23 | 23 | 21.5 | |
| Refrigerant | Type | R22/R407c/R134a/R410a | ||||||||
| Control method | Temperature Sensing External Pressure Equalizing Expansion Valve | |||||||||
| filling volume | Kg | 0.50 | 1.00 | 1.50 | 2.00 | 2.50 | 3.00 | 4.00 | 5.00 | |
| Evaporator | Flow | m³/h | 0.82 | 0.98 | 1.45 | 1.88 | 2.42 | 2.92 | 3.75 | 4.85 |
| water capacity | m³ | 0.028 | 0.04 | 0.05 | 0.05 | 0.065 | 0.065 | 0.13 | 0.18 | |
| Diameter | inch | 1/2" | 3/4" | 1" | 1-1/2" | 1-1/2" | ||||
| Condensator | Type | Efficient brass sets corrugated aluminum fin | ||||||||
| Fan | Type | Axial flow | ||||||||
| air volume | m³/h | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | |
| Protective device | High and low pressure switch, antifreeze protection, fusible plug/safety valve, overload protection device, coil overheat protector, automatic temperature protection switch, etc. | |||||||||
| Machine size | L | mm | 680 | 800 | 1040 | 1140 | 1140 | 1200 | 1400 | 1400 |
| W | mm | 420 | 480 | 555 | 620 | 620 | 650 | 725 | 725 | |
| H | mm | 720 | 850 | 1060 | 1200 | 1200 | 1160 | 1450 | 1450 | |
| Unit weight | Kg | 60 | 90 | 130 | 140 | 170 | 210 | 270 | 350 | |
| Model | JLSF-12HP | JLSF-15HP | JLSF-20HP | JLSF-25HP | JLSF-30HP | JLSF-40HP | JLSF-50HP | JLSF-60HP | ||
| Cooling capacity | KW/h | 37.2 | 46.5 | 65 | 77.5 | 93 | 124 | 155 | 186 | |
| Kcal/h | 29,059 | 37,965 | 50,805 | 61,683 | 74,992 | 97,675 | 116,521 | 156,249 | ||
| Temperature range | 5℃-35℃(Below 0℃ can be customized) | |||||||||
| Power supply | 1N-220V 50HZ/60HZ 3N-380V/415V 50HZ/60HZ | |||||||||
| Total power | KW | 11.4 | 13.62 | 19.8 | 22.75 | 28.3 | 39.2 | 46.75 | 56.1 | |
| Compressor | Type | Hermetic scroll type or piston | ||||||||
| Power | KW | 9 | 11.25 | 15 | 18.75 | 22.5 | 30 | 37.5 | 45 | |
| Circulating pump | Power | KW | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 4 | 4 | 5.5 |
| Head | m | 21.5 | 21.5 | 22 | 22 | 25 | 25 | 25 | 26 | |
| Refrigerant | Type | R22/R407c/R134a/R410a | ||||||||
| Control method | Temperature Sensing External Pressure Equalizing Expansion Valve | |||||||||
| filling volume | Kg | 7.2 | 9.1 | 12.2 | 15.3 | 18.6 | 24.5 | 30.6 | 36.8 | |
| Evaporator | Flow | m³/h | 5.81 | 7.6 | 10.16 | 12.34 | 15.2 | 19.53 | 23.3 | 30.52 |
| water capacity | m³/h | 0.18 | 0.21 | 0.28 | 0.32 | 0.32 | 0.61 | 0.66 | 0.72 | |
| Diameter | inch | 1.5" | 2" | 2.5" | 3" | |||||
| Condensator | Type | Efficient brass sets corrugated aluminum fin | ||||||||
| Fan | Type | Axial flow | ||||||||
| air volume | m³/h | 12000 | 15000 | 20000 | 25000 | 30000 | 40000 | 50000 | 60000 | |
| Protective device | High and low pressure switch, antifreeze protection, fusible plug/safety valve, overload protection device, coil overheat protector, automatic temperature protection switch, etc. | |||||||||
| Machine size | L | mm | 1400 | 1750 | 2000 | 2000 | 2200 | 2000 | 2000 | 2400 |
| W | mm | 725 | 750 | 900 | 900 | 900 | 1800 | 1800 | 1800 | |
| H | mm | 1450 | 1500 | 1770 | 1770 | 1770 | 2200 | 2300 | 2300 | |
| Unit weight | Kg | 370 | 480 | 590 | 590 | 880 | 1000 | 1280 | 1420 | |
Application Industry:
Small air-cooled chillers are suitable for many different industries and applications, including but not limited to the following:
1.Electronics industry: Small air-cooled chillers can provide refrigeration for high-tech products such as semiconductors, optics, and electronic components to ensure the normal operation of the equipment.
2.Pharmaceutical industry: small air-cooled chillers can provide stable cooling effect for the link in the pharmaceutical production process that requires temperature control, ensuring the quality and safety of pharmaceuticals.
3.Food industry: Small air-cooled chillers can provide refrigeration for the links that require temperature control during food processing, storage and transportation to ensure the quality and safety of food.
4.Plastic industry: small air-cooled chillers can provide refrigeration for the temperature-controlled links in plastic injection molding, blow molding, extrusion molding, etc., to ensure product quality and production efficiency.
5.Chemical industry: small air-cooled chillers can provide refrigeration for the links that need temperature control in the chemical production process to ensure the quality and safety of chemical products.
In general, small air-cooled chillers are suitable for various occasions that require refrigeration, and provide efficient, stable and reliable refrigeration solutions for different industries.
Automotive Manufacturing Chemical Engineering Electronics Industry Electroplating Industry
Injection Molding Industry Pharmaceutical Industry Plastic Packaging Industry Printing Industry
Upport and Services:
Air Cooled Chiller technical support and service includes:
1. 24/7 customer support
2. Remote guidance installation and maintenance
3. Remote Diagnostics and Troubleshooting
4. Phone/Email Advice and Guidance
5. User friendly documentation and manuals
6. Software Updates and Upgrades
7. Cost price of spare parts and consumables
Application of Chiller in Extruder:
The application of water chillers in extruders is mainly used to cool the heating elements of the extruder and the heat generated during the extrusion process to ensure the stability and quality of the extrusion process.
During the working process of the extruder, materials such as plastics or rubber are extruded into products of specific shapes, such as pipes, cables, films, etc., through heating and pressure. In this process, the extruder needs to perform constant temperature control on the heating elements (such as heating barrels) to maintain the required extrusion temperature.
The water chiller reduces the temperature of the extruder by circulating cooling water. It passes the cooling water through the cooling system and then connects the cooling water to the heating elements in the extruder through pipes or cooling loops. The cooling water absorbs the heat released by the heating elements and takes it away, thereby maintaining a stable temperature during the extrusion process.
The application of water chillers can bring the following benefits:
1. Temperature control: The water chiller can provide precise cooling effect to ensure that the temperature of the heating elements in the extruder remains within the required range, avoiding the impact of overheating or overcooling on the extrusion process and product quality.
2. Stability: By cooling the extruder, the water chiller can help maintain the stability of the extrusion process and reduce the impact of temperature fluctuations on product size, appearance and performance.
3. Improve production efficiency: The chiller can quickly cool the heating element, reduce the time of the extruder during startup and shutdown, and improve production efficiency and output.
4. Extend equipment life: By controlling the temperature of the extruder, the chiller can reduce the damage to the equipment caused by thermal stress, and extend the service life and reliability of the equipment.
In short, the application of the chiller in the extruder can provide precise temperature control, ensure the stability of the extrusion process and product quality, and improve production efficiency and equipment life.
