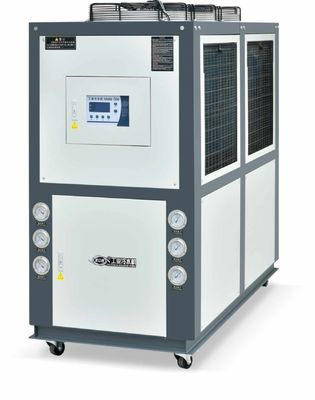

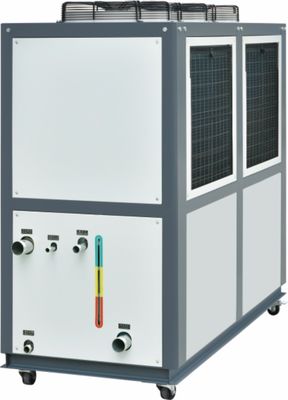

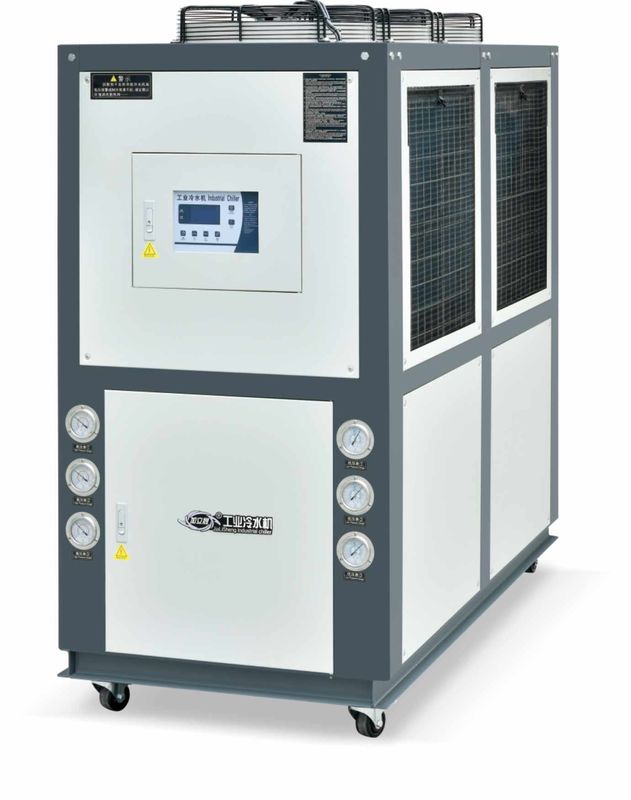

JLSF-15HP Air Cooled Water Chiller For Electronic Processing 220V 380V
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | JIALIS |
| Certification: | CE/ISO9001 |
| Model Number: | JLSF-15HP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Discuss |
| Packaging Details: | Plywood wooden box |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 400 units per month |
|
Detail Information |
|||
| Product Name: | Air Cooled Water Chiller | Control System: | PLC/Microcomputer |
|---|---|---|---|
| Outlet Water Temperature: | 5-50℃ | Compressor Type: | Scroll/Semi-Hermetic/Hermetic |
| Evaporator: | Water Tank Coil/Shell And Tube/Plate Heat Exchanger | Condenser: | Finned Tube |
| Condenser Fans: | Axial/Centrifugal | Noise Level: | ≤75dB(A) |
| Voltage: | 220V/380V/415V/440V/480V | Frequency: | 50HZ/60HZ |
| Refrigerant: | R22/R407C/R134A/R410A/R404A | Protection System: | High/Low Pressure, Water Flow, Overload, Etc. |
| Protection Level: | IP54 | Pump: | Centrifugal/vertical |
| Warranty: | 12 Months | ||
| Highlight: | JLSF-15HP Air Cooled Water Chiller,Air Cooled Water Chiller 220V,380V Air Cooled Water Chiller |
||
Product Description
JLSF-15HP Air Cooled Water Chiller Electronic Processing, Electrical Components, Circuit Board Etching
Product Description:
An air-cooled chiller is an air-cooled chiller typically used in air conditioning systems in industrial or commercial buildings. Its working principle is to use a fan to blow outdoor air into the inside of the chiller, absorb indoor heat through water circulation, and then circulate the cooled water back into the room for cooling.
Compared with water-cooled chillers, air-cooled chillers do not require additional water cooling systems, so installation and maintenance are simpler and more economical. However, its cooling efficiency is affected by conditions such as outdoor temperature and humidity, and generally requires greater cooling power to achieve the same cooling effect.
Air-cooled chillers can usually be modularized according to needs to adapt to refrigeration and air conditioning systems of different sizes. It can also be combined with other heat recovery equipment, such as air source heat pumps or waste heat recovery units, to increase energy efficiency.
Product Features:
Compared with other types of chillers, air-cooled chillers have the following advantages:
1. No need for additional water cooling system: The air-cooled chiller can directly use outdoor air for cooling, and does not require an additional water cooling system, so the installation and maintenance costs are lower.
2. Wide range of applications: Air-cooled chillers can be applied to various buildings and indoor environments, including industrial, commercial and residential, etc.
3. Easy to install: Compared with water-cooled chillers, air-cooled chillers do not require pipe connections, making installation easier.
4. Low energy consumption: When the air-cooled chiller is cooling, it does not need electric energy to drive the water pump, so the energy consumption is low.
5. Low maintenance cost: Since the air-cooled chiller does not have a water cooling system, the use of water pumps and water pipes is reduced, and the maintenance cost is also reduced accordingly.
In general, the air-cooled chiller has the advantages of convenient installation, low maintenance cost, wide application range, and low energy consumption, so it has been widely used in some applications.
Working Principle:
The main components of an air-cooled chiller include a compressor, an air condenser, an expansion valve, and an evaporator. Here is a basic overview of its workflow:
1.The compressor takes in low-pressure, low-temperature refrigerant gas and compresses it into high-pressure, high-temperature gas.
2.This high-temperature, high-pressure refrigerant gas enters the air condenser, exchanges heat with the ambient air, and discharges heat to the environment, while the refrigerant condenses from a gaseous state to a liquid state.
3.The high-pressure refrigerant liquid passes through the expansion valve, the pressure suddenly drops, and it turns into a low-pressure and low-temperature refrigerant liquid.
4.The low-temperature and low-pressure refrigerant liquid enters the evaporator, absorbs indoor heat, evaporates into a gaseous state by itself, and the indoor temperature drops to achieve the purpose of refrigeration.
5.The refrigerant gas is sucked into the compressor again to complete a cycle.
The advantages of air-cooled chillers include simple installation, no need for cooling towers and cooling water pumps, and low maintenance costs. However, its efficiency is lower than that of water-cooled chillers, especially at high ambient temperatures, and its efficiency will be further reduced
| ① Compressor | ⑤ Evaporator | ⑨ Temperature sensor | ⑬ Bypass valve |
| ② Condenser | ⑥ Ball valve | ⑩ Water tank | ⑭ Low voltage controller |
| ③ Filter drier | ⑦ Antifreeze switch | ⑪ Water pump pressure gauge | ⑮ High voltage controller |
| ④ Expansion valve | ⑧ Float switch | ⑫ Water pump |
⑯ Pressure relief valve |
Techinical Parameters:
| Model | JLSF-1HP | JLSF-2HP | JLSF-3HP | JLSF-4HP | JLSF-5HP | JLSF-6HP | JLSF-8HP | JLSF-10HP | ||
| Cooling capacity | KW/h | 3.1 | 6.2 | 9.3 | 12.4 | 15.5 | 18.6 | 24.8 | 31 | |
| Kcal/h | 2,700 | 5,400 | 8,100 | 10,800 | 13,500 | 16,200 | 21,600 | 27,000 | ||
| Temperature range | 5℃-35℃(Below 0℃ can be customized) | |||||||||
| Power supply | 1PH-220V 50HZ/60HZ 3PH-380V/415V 50HZ/60HZ | |||||||||
| Total power | KW | 1.21 | 2.03 | 2.84 | 3.7 | 4.5 | 5.7 | 7.33 | 8.83 | |
| Compressor | Type | Hermetic scroll type or piston | ||||||||
| Power | KW | 0.75 | 1.50 | 2.25 | 3.00 | 3.75 | 4.50 | 6.00 | 7.50 | |
| Circulating pump | Power | KW | 0.375 | 0.375 | 0.375 | 0.375 | 0.75 | 0.75 | 0.75 | 1.5 |
| Head | m | 22 | 22 | 22 | 22 | 23 | 23 | 23 | 21.5 | |
| Refrigerant | Type | R22/R407c/R134a/R410a | ||||||||
| Control method | Temperature Sensing External Pressure Equalizing Expansion Valve | |||||||||
| filling volume | Kg | 0.50 | 1.00 | 1.50 | 2.00 | 2.50 | 3.00 | 4.00 | 5.00 | |
| Evaporator | Flow | m³/h | 0.82 | 0.98 | 1.45 | 1.88 | 2.42 | 2.92 | 3.75 | 4.85 |
| water capacity | m³ | 0.028 | 0.04 | 0.05 | 0.05 | 0.065 | 0.065 | 0.13 | 0.18 | |
| Diameter | inch | 1/2" | 3/4" | 1" | 1-1/2" | 1-1/2" | ||||
| Condensator | Type | Efficient brass sets corrugated aluminum fin | ||||||||
| Fan | Type | Axial flow | ||||||||
| air volume | m³/h | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | |
| Protective device | High and low pressure switch, antifreeze protection, fusible plug/safety valve, overload protection device, coil overheat protector, automatic temperature protection switch, etc. | |||||||||
| Machine size | L | mm | 680 | 800 | 1040 | 1140 | 1140 | 1200 | 1400 | 1400 |
| W | mm | 420 | 480 | 555 | 620 | 620 | 650 | 725 | 725 | |
| H | mm | 720 | 850 | 1060 | 1200 | 1200 | 1160 | 1450 | 1450 | |
| Unit weight | Kg | 60 | 90 | 130 | 140 | 170 | 210 | 270 | 350 | |
| Model | JLSF-12HP | JLSF-15HP | JLSF-20HP | JLSF-25HP | JLSF-30HP | JLSF-40HP | JLSF-50HP | JLSF-60HP | ||
| Cooling capacity | KW/h | 37.2 | 46.5 | 65 | 77.5 | 93 | 124 | 155 | 186 | |
| Kcal/h | 29,059 | 37,965 | 50,805 | 61,683 | 74,992 | 97,675 | 116,521 | 156,249 | ||
| Temperature range | 5℃-35℃(Below 0℃ can be customized) | |||||||||
| Power supply | 1N-220V 50HZ/60HZ 3N-380V/415V 50HZ/60HZ | |||||||||
| Total power | KW | 11.4 | 13.62 | 19.8 | 22.75 | 28.3 | 39.2 | 46.75 | 56.1 | |
| Compressor | Type | Hermetic scroll type or piston | ||||||||
| Power | KW | 9 | 11.25 | 15 | 18.75 | 22.5 | 30 | 37.5 | 45 | |
| Circulating pump | Power | KW | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 4 | 4 | 5.5 |
| Head | m | 21.5 | 21.5 | 22 | 22 | 25 | 25 | 25 | 26 | |
| Refrigerant | Type | R22/R407c/R134a/R410a | ||||||||
| Control method | Temperature Sensing External Pressure Equalizing Expansion Valve | |||||||||
| filling volume | Kg | 7.2 | 9.1 | 12.2 | 15.3 | 18.6 | 24.5 | 30.6 | 36.8 | |
| Evaporator | Flow | m³/h | 5.81 | 7.6 | 10.16 | 12.34 | 15.2 | 19.53 | 23.3 | 30.52 |
| water capacity | m³/h | 0.18 | 0.21 | 0.28 | 0.32 | 0.32 | 0.61 | 0.66 | 0.72 | |
| Diameter | inch | 1.5" | 2" | 2.5" | 3" | |||||
| Condensator | Type | Efficient brass sets corrugated aluminum fin | ||||||||
| Fan | Type | Axial flow | ||||||||
| air volume | m³/h | 12000 | 15000 | 20000 | 25000 | 30000 | 40000 | 50000 | 60000 | |
| Protective device | High and low pressure switch, antifreeze protection, fusible plug/safety valve, overload protection device, coil overheat protector, automatic temperature protection switch, etc. | |||||||||
| Machine size | L | mm | 1400 | 1750 | 2000 | 2000 | 2200 | 2000 | 2000 | 2400 |
| W | mm | 725 | 750 | 900 | 900 | 900 | 1800 | 1800 | 1800 | |
| H | mm | 1450 | 1500 | 1770 | 1770 | 1770 | 2200 | 2300 | 2300 | |
| Unit weight | Kg | 370 | 480 | 590 | 590 | 880 | 1000 | 1280 | 1420 | |
Application Industry:
Air-cooled chillers are widely used in the following industries and fields:
1. Industrial manufacturing: Air-cooled chillers can provide refrigeration services for factories, manufacturing workshops, machinery and equipment, etc., keep indoor temperature and humidity stable, and ensure the normal operation of production lines.
2. Commercial buildings: Air-cooled chillers can provide cooling services for commercial buildings, such as large shopping malls, office buildings, hotels, hospitals, schools, etc., to ensure the comfort of the indoor environment.
3. Pharmaceutical industry: Air-cooled chillers can provide refrigeration services for reactors, centrifuges, etc. in the pharmaceutical process to ensure the stability and quality of the pharmaceutical process.
4. Food processing industry: Air-cooled chillers can provide refrigeration services for food processing equipment to ensure the hygiene and quality of food processing.
5. Shipbuilding industry: Air-cooled chillers can provide refrigeration services for ships, such as ship bridges and engine rooms, to ensure the normal and safe operation of ships.
In general, air-cooled chillers can provide refrigeration services for various industries and fields, ensuring the comfort of the indoor environment and the stability of the production process.
Automotive Manufacturing Chemical Engineering Electronics Industry Electroplating Industry
Injection Molding Industry Pharmaceutical Industry Plastic Packaging Industry Printing Industry
Upport and Services:
Air Cooled Chiller technical support and service includes:
1. 24/7 customer support
2. Remote guidance installation and maintenance
3. Remote Diagnostics and Troubleshooting
4. Phone/Email Advice and Guidance
5. User friendly documentation and manuals
6. Software Updates and Upgrades
7. Cost price of spare parts and consumables
Packing and Shipping:
Air-cooled chillers are packaged and shipped in standard plywood wooden boxes. All components are secured and protected with a film, and the unit is then placed on a pallet for easy transport. And affix the shipping mark information label on the wooden box to ensure correct delivery.
Why more people choose air-cooled chillers?
Compared with water-cooled chillers, more and more people choose to use air-cooled chillers for the following reasons:
1. Easy installation: Compared with the water-cooled chiller, which requires pipe connection, the air-cooled chiller does not need it, and the installation is easier.
2. Low maintenance cost: Since the air-cooled chiller does not have a water cooling system, the use of water pumps and water pipes is reduced, and the maintenance cost is also reduced accordingly.
3. Low energy consumption: Air-cooled chillers do not need electricity to drive the water pump when cooling, so energy consumption is low.
4. High reliability: The air-cooled chiller does not require an additional water pump, which reduces the possibility of pump failure, so the reliability is higher.
5. Wide range of applications: Air-cooled chillers can be applied to various buildings and indoor environments, including industrial, commercial and residential, etc.
6. Friendly to the environment: The air-cooled chiller does not require an additional water cooling system, which reduces the consumption of water resources and is more friendly to the environment.
In general, air-cooled chillers are more convenient, economical and environmentally friendly than water-cooled chillers, so they are widely used in some applications.
